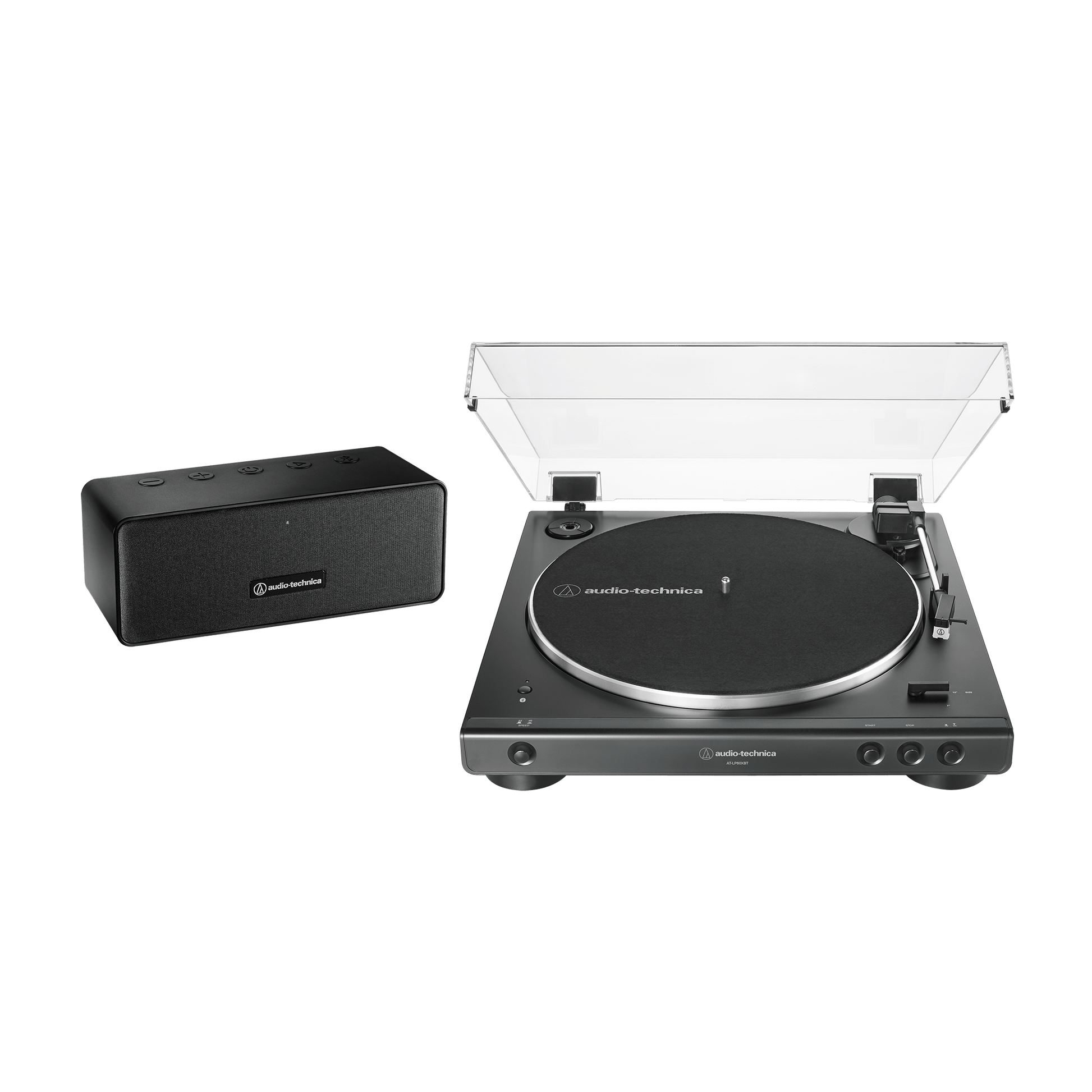

Audio-Technica | AT-LP60XSPBT

Now there’s an easy way to enjoy the AT-LP60XBT wireless belt-drive turntable straight out of the box. This turntable/speaker system combines the AT-LP60XBT with a powerful wireless speaker to give you great-sounding audio from your vinyl with no additional audio equipment required. Set the turntable up, pair it with the speaker, place the speaker anywhere within the 30-foot operating range, and then sit back and enjoy your records.

Of course, the AT-LP60XBT can also be used as a traditional wired turntable (and with other wireless speakers and headphones, as well). But however you choose to listen, the turntable will give you outstanding audio reproduction with the ease of automatic operation controlled by the Start and Stop buttons on the front of the unit. There’s also a button that lifts and lowers the tonearm, allowing you to operate the turntable manually if you choose.

The AT-LP60XBT-BK plays both 33-1/3 and 45 RPM records and includes a Dual Moving Magnet™ cartridge with replaceable stylus that is integrated into the tonearm for assured performance and ease of setup. The turntable comes with a 45 RPM adapter, a dual RCA output cable (for wired connection) and a removable hinged dust cover.

The portable wireless speaker is 10.6" wide, 4.1" high, and 4.5" deep, and is equipped with two 3" full-range drivers and a passive radiator to deliver clear, powerful audio with enhanced bass. The speaker housing is constructed of a durable injection-modeled polymer, and is outfitted with an elegant fabric grille. Power, play/pause, volume and hands-free calling buttons are located on the top of the speaker for easy access, with the built-in mic (for making calls via a paired smartphone) conveniently located on the front of the speaker next to the power LED. A 3.5 mm (1/8") jack is available on the back of the speaker, allowing you to listen to audio from a wired device. The speaker’s internal battery supplies 12 hours of continuous playback, and can be recharged from the USB-C port while using the included 61 cm (2') USB charging cable. The speaker also comes with a 3.5 mm (1/8") to 3.5 mm (1/8") auxiliary audio cable.

FEATURES:

* AT-LP60XBT-BK turntable and portable speaker deliver powerful, full-range audio via a Bluetooth wireless connection
*
* Turntable connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via included dual RCA output cable
*
* Compatible with the high-quality Qualcomm® aptX™ audio codec
*
* Fully automatic operation with two speeds: 33-1/3 and 45 RPM
*
* Anti-resonance, die-cast aluminum platter
*
* Integral Dual Moving Magnet™ phono cartridge with replaceable stylus
*
* Switchable built-in preamplifier enables wired connection to components with or without a dedicated phono input
*
* Turntable includes 3.5 mm (1/8") stereo mini-plug (male) to dual RCA (male) output cable, 45 RPM adapter, and removable hinged dust cover
*
* Speaker’s two 73 mm (3") drivers and passive radiator provide clear, full-range audio with enhanced bass
*
* Speaker is equipped with power, play/pause, volume and hands-free calling buttons, built-in mic, and 3.5 mm (1/8") audio input jack
*
* Speaker’s internal battery supplies 12 hours of continuous playback
*
* Speaker includes 3.5 mm (1/8") stereo mini-plug (male) to 3.5 mm (1/8") stereo mini-plug (male) AUX cable, and 61 cm (2') USB-C charging cable

SPECS:

* Type    Belt drive turntable, fully automatic
* Motor    DC servo-controlled
* Speeds    33-1/3 RPM, 45 RPM
* Turntable Platter    Aluminum
* Wow and Flutter    Less than 0.25% (WTD) @ 3 kHz (JIS)
* Signal-to-Noise Ratio    >50 dB (DIN-B)
* Output Level    Preamp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec Preamp “LINE” 150 mV nominal at 1 kHz, 5 cm/sec
* Phono Pre-Amp Gain    36 dB nominal, RIAA equalized
* Power Supply Requirements    100 to 240V, 50/60 Hz, 0.6 A Max.
* Power Consumption    1.5 W
* Dimensions    359.5 mm (14.15") W x 97.5 mm (3.84") H x 373.30 mm (14.70") D
* Weight    2.6 kg (5.73 lbs.)
* Accessories Included    3.5 mm (1/8") stereo mini-plug (male) to dual RCA (male) output cable; AC adapter; 45 RPM adapter; felt mat; platter (with drive belt); removable hinged dust cover
* AC Adapter    12 V, 2 A
* Replacement Stylus    ATN3600L
* Communication System    Bluetooth Version 5.0
* Maximum RF Output    10 mW EIRP
* Maximum Communication Range    Line of sight - approx. 10 m (33')
* Modulation Method    FHSS
* Compatible Bluetooth Profile    A2DP
* Support Codec    SBC, Qualcomm® aptX™ audio

Rel. Date: 07/01/2020
UPC: 4961310154547
