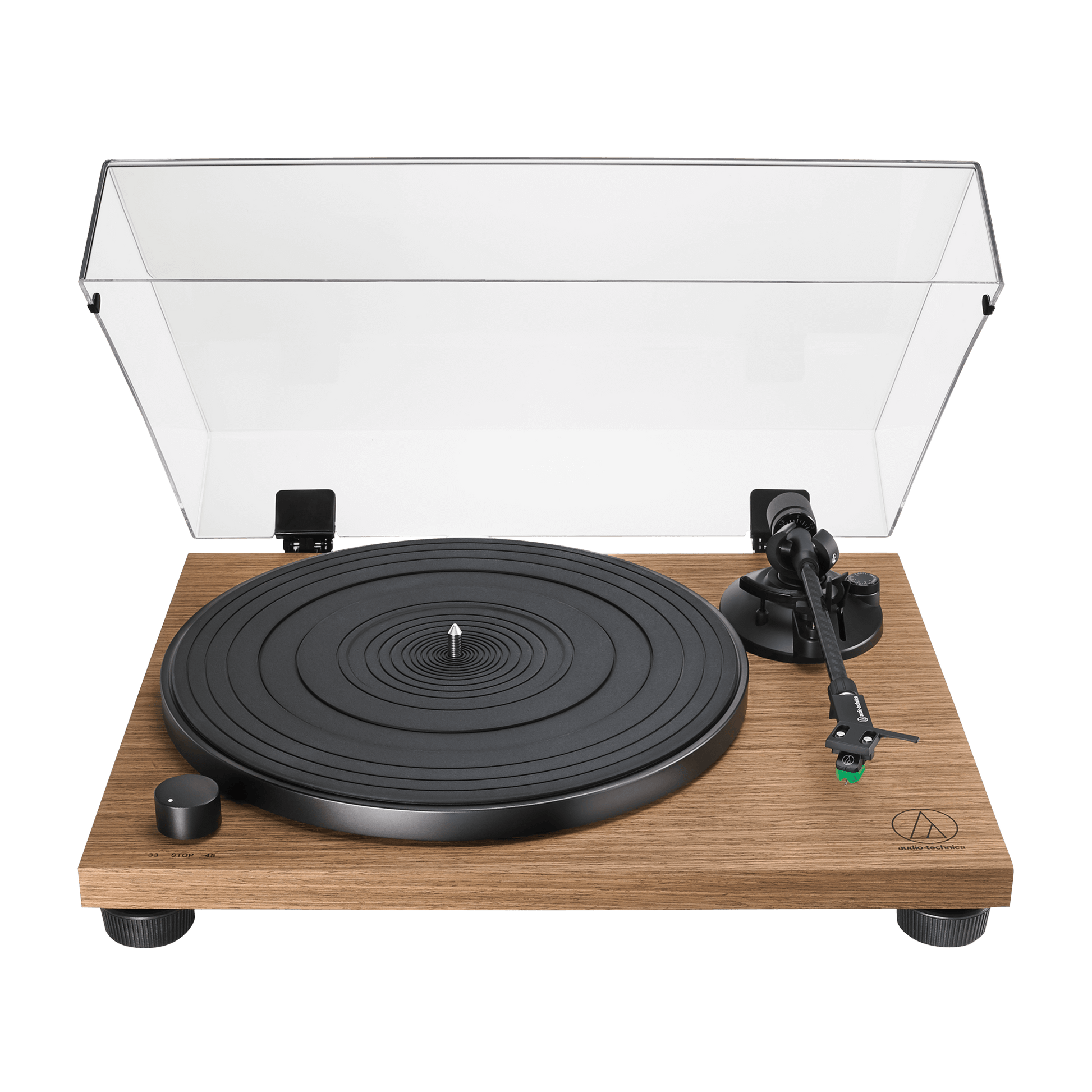

| AT-LPW40WN

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.

The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

FEATURES:

* Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
* Motor features a speed-sensor system to maintain accurate platter rotation speed
* Fully manual operation
* Adjustable dynamic anti-skate control
* Professional anti-resonance, die-cast aluminum platter with rubber mat
* AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
* AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
* Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
* Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
* Built-in switchable phono pre-amplifier for phono or line-level output
* AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
* Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover

SPECS:

* Type    Belt-drive manual turntable
* Motor    DC servo with Active Speed Stabilization
* Drive Method    Belt drive
* Speeds    33-1/3 RPM, 45 RPM
* Turntable Platter    Die-cast aluminum
* Wow and Flutter    < 0.15% WRMS (33 RPM) at 3 kHz
* Signal-to-Noise Ratio    >60dB
* Output Level    Pre-amp “PHONO”: 4.0 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec
* Phono Pre-Amp Gain    35 dB nominal, RIAA equalized
* Power Supply Requirements    100-240 V, 50/60 Hz, 0.5 A Max.
* Dimensions    420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H
* Weight    4.72 kg (10.40 lbs.) without dust cover
* Accessories Included    Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge, 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9')) (AD-SA1205WE), Dust cover hinges
* AC Adapter    12 V, 0.5 A
* Tonearm Type    Static balanced straight carbon tonearm
* Effective Arm Length    223.6 mm
* Overhang    18.6 mm
* Tracking Error Angle    <2 degrees
* Stylus Pressure Adjustment Range    0-3 g
* Applicable Cartridge Weight    12-17 g
* Replacement Stylus    AT-VMN95E

Rel. Date: 05/28/2019
UPC: 4961310146160
