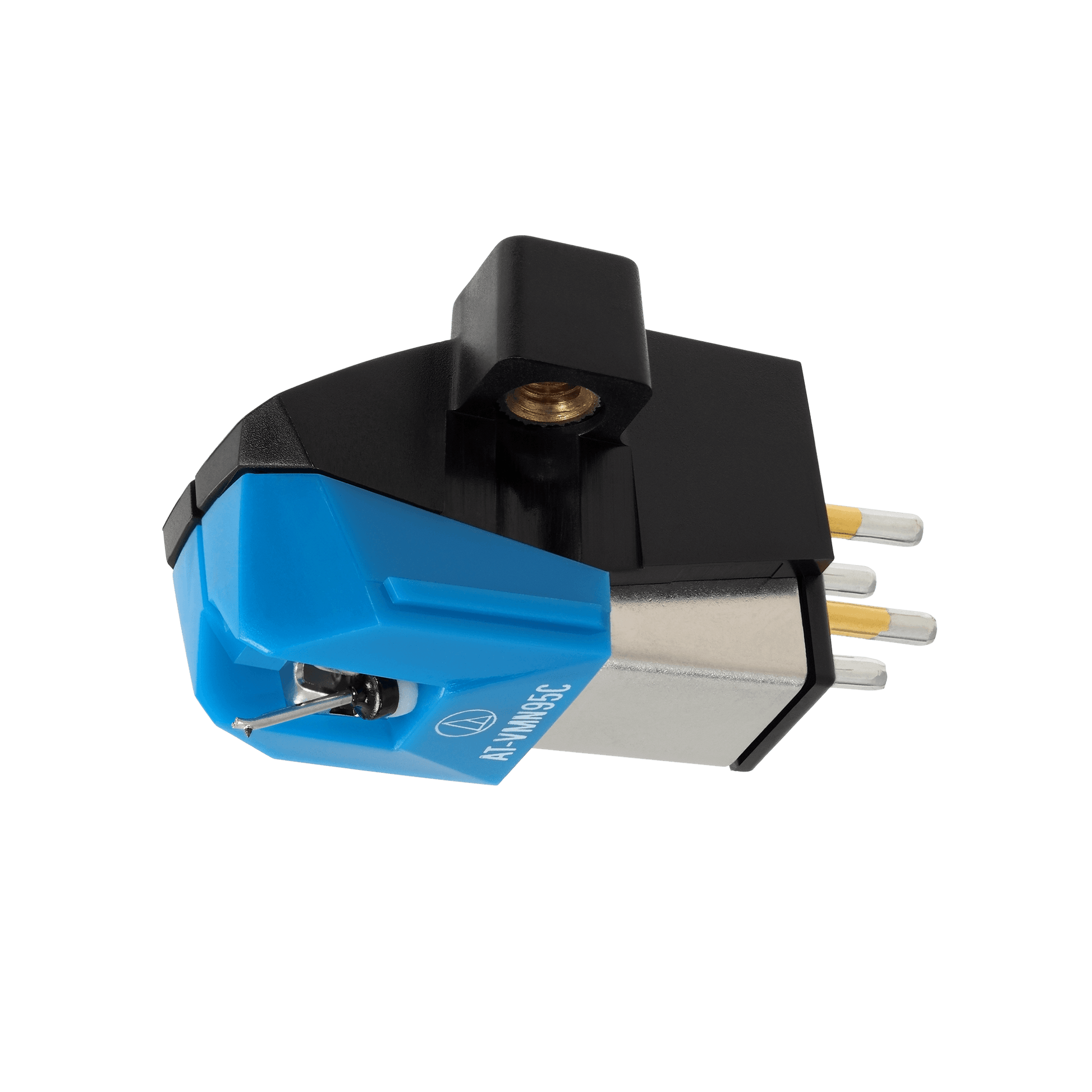

Audio-Technica | AT-VM95C

This VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Features

* VM95 Series dual magnet cartridge with 0.6 mil conical stylus
* Aluminum cantilever
* Specially wound coils increase output voltage
* Durable low-resonance polymer housing
* Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
* Compatible with any AT-VMN95 replacement stylus

Specs

* Frequency Response    20-20,000 Hz
* Channel Separation    18 (dB at 1 kHz)
* Vertical Tracking Angle    23°
* Vertical Tracking Force    1.8-2.2 g (2.0 g standard)
* Stylus Construction    Bonded round shank
* Recommended Load Impedance    47,000 ohms
* Coil Impedance    3.3 k ohms (1 kHz)
* DC Resistance    485 ohms
* Coil Inductance    550 mH (1 kHz)
* Output Voltage    4.0 mV (1 kHz, 5 cm/sec.)
* Output Channel Balance    2.5 dB (1 kHz)
* Stylus Shape    0.6 mil conical
* Cantilever    Aluminum pipe
* Static Compliance    17 x 10 – 6 cm / dyne
* Dynamic Compliance    6.5 x 10 – 6 cm / dyne (100 Hz)
* Mounting    Half-inch
* Cartridge Weight    6.1g
* Dimensions    17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
* Accessories Included    Two 11 mm installation screws, two 8 mm installation screws, two washers
* Model    AT-VM95C
* Mounting Feature    Half-inch mount
* Recommended Load Capacitance    100 to 200 pF
* Replacement Stylus    AT-VMN95C
* Stylus Size    0.6 mil
* Type    VM Stereo Dual Magnet
* Weight    6.1 g (0.22 oz)
* Wire Used for Coil    T.P. Copper

UPC: 4961310157326
