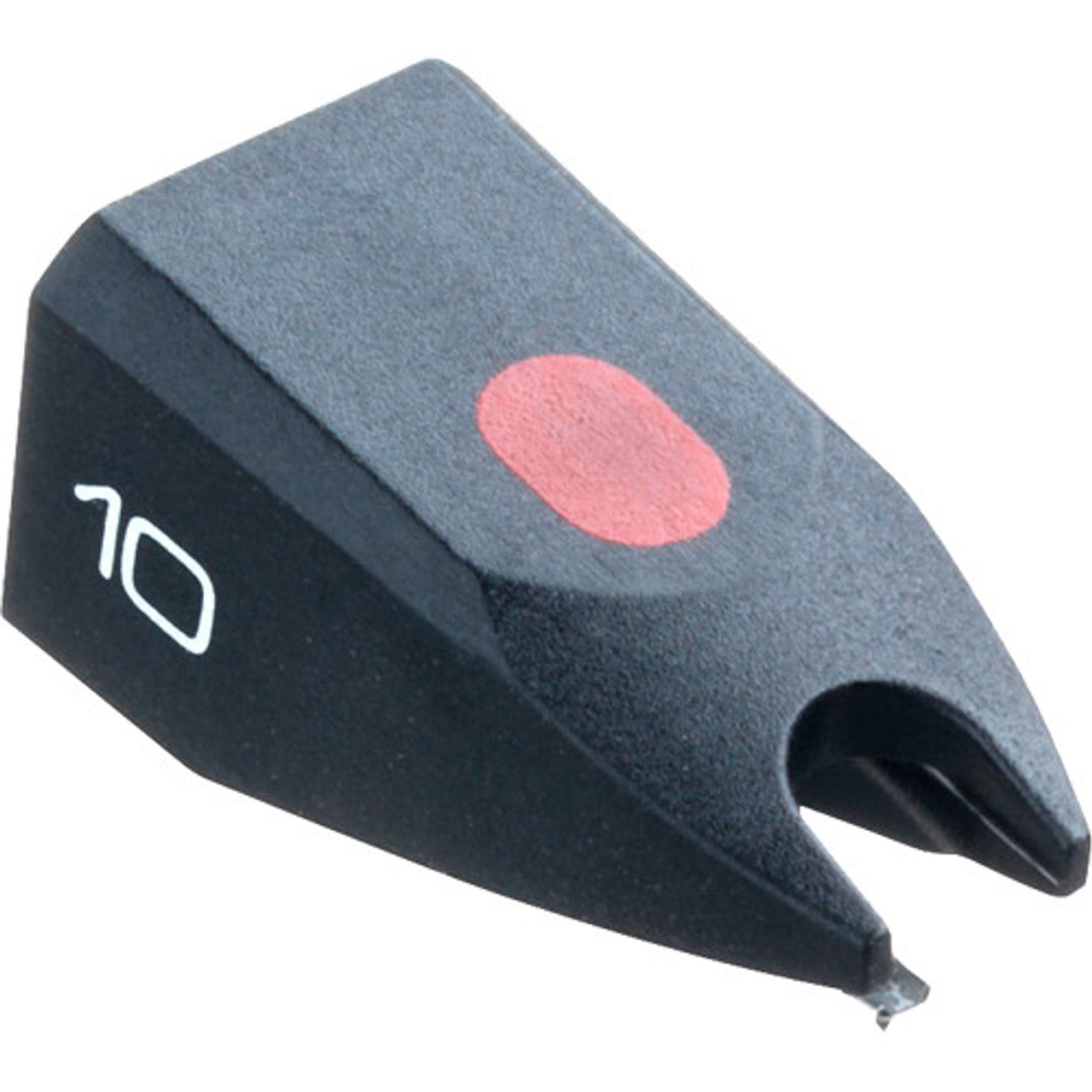

Ortofon | OM Stylus 10

The single Ortofon Stylus 10 is an elliptical stylus compatible with a wide variety of Ortofon cartridges.

Compatibility

Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB 12, and LMA 12

Specs

* Frequency Range    20 Hz to 24 kHz
* Frequency Response    20 Hz to 20 kHz at +3/-1 dB
* Tracking Ability    Recommended Tracking Force: >70 μm at 315 Hz
* Compliance    Dynamic, Lateral: 20 μm/mN
* Stylus    Type: Elliptical
* Tip Radius: r/R 8/18 µm
* Tracking Force    1.25 to 1.75 g, 12.5 to 17.5 mN
* Recommended: 1.5 g, 15 mN
* Tracking Angle    20°
* Weight    Not Specified by Manufacturer
* Packaging Info
* Package Weight    0.025 lb
* Box Dimensions (LxWxH)    1.55 x 1.45 x 1.4"

UPC: 5705796130065
